Modern commercial buildings increasingly rely on glazed facades to create transparency, daylight, and a strong architectural identity. At the same time, entrance doors and access points must provide reliable daily operation, security, weather protection, and safe movement of people.
When these elements are designed independently, differences in aluminum profiles, glass appearance, sightlines, joints, drainage, and performance can compromise both the visual continuity and technical performance of the facade. A properly engineered Curtain Wall with Commercial Doors addresses this issue by integrating door openings into the overall curtain wall design.
An integrated approach allows architects, facade engineers, contractors, and developers to coordinate the curtain wall, commercial doors, glazing, hardware, sealing, drainage, and structural interfaces as one building-envelope system. The result can be a more consistent facade appearance while simplifying engineering coordination and improving control over air, water, wind, thermal, and safety performance.

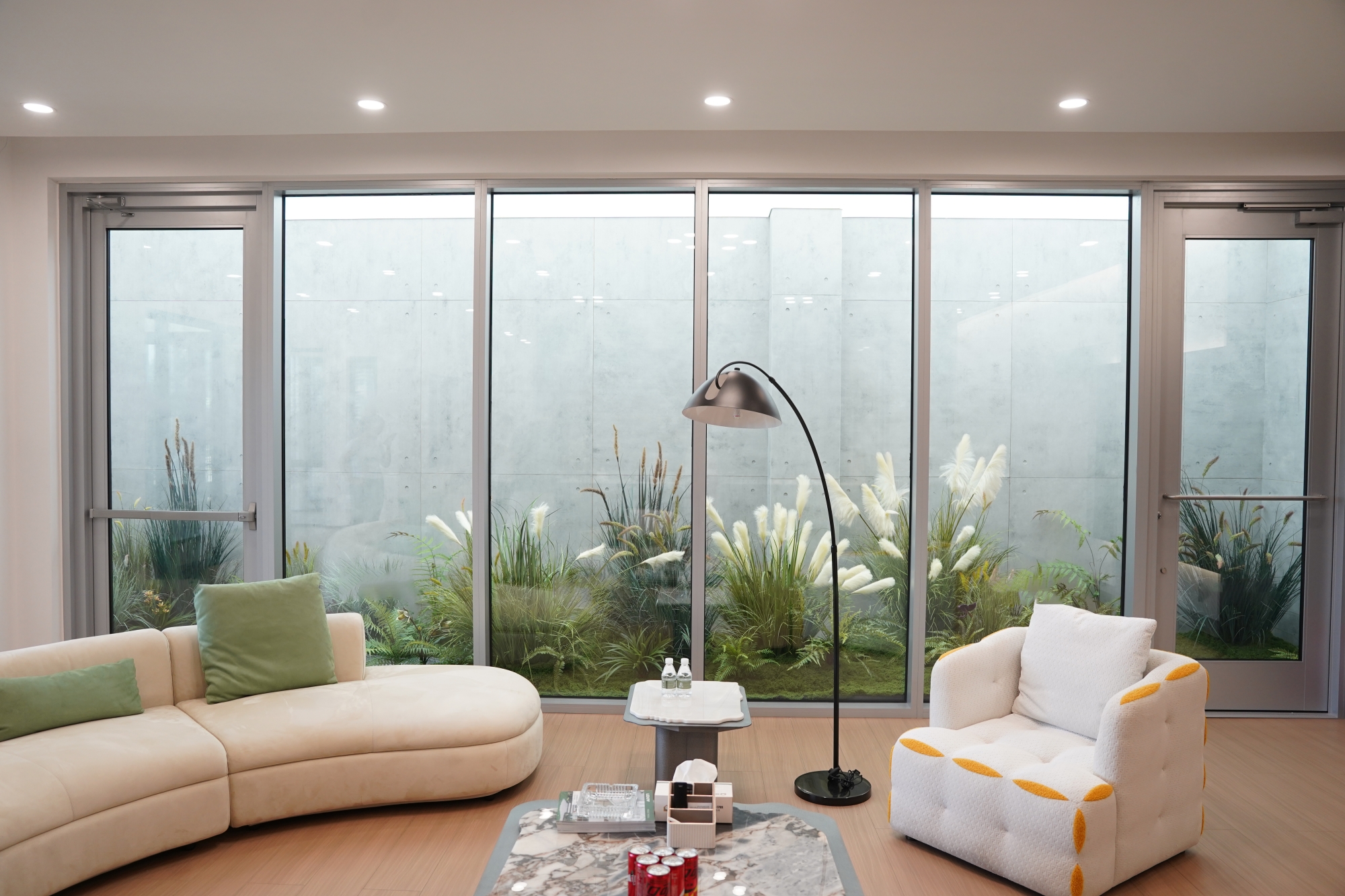

A Curtain Wall with Commercial Doors is a building facade system in which commercial-grade doors are structurally and visually coordinated with a curtain wall assembly.
A conventional curtain wall is generally a non-load-bearing exterior wall system attached to the primary building structure. It transfers its own dead load and environmental loads, such as wind pressure, back to the building structure through anchors and supporting components.
When doors are incorporated into the curtain wall, the door opening becomes part of the overall facade design. The door frame, adjacent curtain wall profiles, glazing, gaskets, thresholds, flashing, drainage, and hardware must work together.
The basic system can include:
Aluminum curtain wall mullions and transoms
Aluminum commercial door frames
Insulated or non-insulated glass
Tempered or laminated safety glass
Low-E and solar-control glazing
Thermal-break components
EPDM or equivalent sealing gaskets
Structural anchors and brackets
Door hinges and closers
Multi-point or commercial locking hardware
Thresholds and weather seals
Drainage channels and weep paths
Entrance handles and access-control components
The core design principle is system integration rather than simply installing a door into an existing wall.
For large commercial projects, an architectural facade integrated door and wall system should be developed around coordinated dimensions, facade modules, glass lines, hardware requirements, structural loads, and building-envelope performance criteria.
Aluminum is widely used in commercial curtain wall construction because it combines relatively low weight with structural strength, corrosion resistance, dimensional stability, and flexible architectural finishing.
The curtain wall mullions and transoms form the primary framework that supports the glazing. Commercial door profiles are then designed to coordinate with these facade modules.
A properly matched aluminum curtain wall matching door should maintain compatible:
Profile depths
Sightlines
Surface finishes
Glass rebates
Gasket systems
Joint dimensions
Structural interfaces
This coordination helps prevent the door from appearing visually disconnected from the surrounding facade.
Glass frequently occupies most of the visible area of a curtain wall, making its specification important for both appearance and performance.
Common options include:
Double insulated glass
Triple insulated glass
Low-E glass
Solar-control glass
Tempered glass
Laminated glass
Tempered laminated glass
Acoustic glazing
Low-iron architectural glass
The door glazing should normally be coordinated with adjacent curtain wall glazing where visual continuity is important.
For example, if the facade uses a neutral Low-E insulated glass unit, selecting a substantially different glass for the entrance door may create noticeable color or reflectivity differences.
Glass selection should also consider wind loads, impact risk, human safety, thermal performance, acoustic requirements, solar exposure, and applicable local codes.
Commercial doors are subject to substantially more frequent operation than many fixed facade components.
Depending on the building, hardware can include:
Heavy-duty hinges
Floor springs
Door closers
Panic exit devices
Multipoint locks
Pull handles
Automatic door operators
Access-control locks
Electromagnetic locking systems
Electronic card or biometric access systems
Hardware should be selected according to door dimensions, door weight, usage frequency, security requirements, accessibility requirements, and environmental conditions.
The junction between the curtain wall and commercial door requires careful sealing.
A complete sealing strategy can incorporate:
Compression gaskets
EPDM seals
Silicone sealants
Backer rods
Perimeter flashing
Door thresholds
Interlocking weather seals
The objective is to control air leakage and prevent uncontrolled water penetration around the door perimeter.
A weatherproof commercial curtain wall door should therefore be evaluated as part of the complete facade rather than as an isolated door product.
Water management is particularly important around curtain wall door openings.
Rainwater entering the exterior glazing cavity or reaching the door frame must have a controlled path toward drainage outlets. The system should prevent water from accumulating at thresholds or migrating into interior finishes.
The curtain wall's pressure-equalization and drainage principles should be coordinated with the commercial door sill and threshold.
Poorly coordinated drainage can create localized leakage even when both the curtain wall and door individually have good water-resistance characteristics.
Aluminum is an efficient structural material, but untreated aluminum is also a strong conductor of heat.
For conditioned commercial buildings, thermal-break curtain wall and door profiles can reduce conductive heat transfer through the frame.
An energy saving curtain wall door system typically combines:
Thermally improved aluminum profiles
Insulated glazing
Low-E coatings
Warm-edge or appropriate spacers
Continuous gaskets
Properly sealed perimeter joints
Correct installation interfaces
The final thermal performance should be evaluated using project-specific calculations and applicable standards rather than relying on the profile description alone.
One of the most visible advantages is facade uniformity.
When the commercial door uses coordinated aluminum profiles, glazing, and finishes, the entrance can visually merge into the surrounding curtain wall.
This is especially valuable for minimalist commercial architecture where inconsistent sightlines or frame colors can become highly noticeable.
A unified system can coordinate:
Horizontal and vertical sightlines
Glass color
Aluminum finish
Module dimensions
Door proportions
Mullion positioning
The facade and entrance should function as a coordinated building envelope.
Integration helps engineers address air leakage, water penetration, thermal bridging, and structural movement at the interface between wall and door.
Performance targets may include:
Air infiltration resistance
Water penetration resistance
Wind-load resistance
Thermal insulation
Acoustic performance
Structural movement accommodation
Testing and performance verification should follow the requirements applicable to the project location and facade system.
Commercial entrances can experience thousands or even millions of operating cycles over their service life.
Consequently, door hardware, hinges, closers, locks, glass, thresholds, and frames should be selected for the expected traffic level.
Safety glazing is particularly important in large glazed doors. Tempered or laminated safety glass may be required depending on the location and applicable regulations.
For emergency exits, accessibility routes, and fire-rated applications, the door assembly must satisfy the specific requirements governing that application.
Large glazed facades can have a significant influence on building energy consumption.
Using insulated glazing and thermally improved aluminum framing can reduce heat transfer through the facade.
Solar-control glazing may also be useful in buildings exposed to high solar radiation.
However, energy performance should be considered at the building-envelope level. Glass selection, frame performance, orientation, shading, HVAC design, and installation all influence the final result.
Commercial doors provide controlled access while maintaining the transparency of the glazed facade.
Depending on the building, doors can provide:
Main public entrances
Staff access
Service access
Emergency exits
Balcony or terrace access
Ventilation openings
Automatic operators can also improve accessibility and support high-traffic entrances.
A coordinated facade can strengthen the visual identity of commercial properties.
For office headquarters, hotels, retail developments, and mixed-use projects, entrance areas are often among the most visible parts of the building.
A carefully designed integrated curtain wall and door system can contribute to a cleaner architectural expression while reducing visual inconsistencies between facade components.
An outward-opening casement door is suitable where exterior opening clearance is available.
It can provide a straightforward access solution while maintaining the visual characteristics of the curtain wall.
An inward-opening configuration can be appropriate where external clearance is restricted.
However, interior circulation space and accessibility should be considered before selection.
Sliding doors are frequently used in shopping centers, hotels, office lobbies, and other high-traffic entrances.
Automatic sliding systems can provide convenient access while minimizing the swing area required by hinged doors.
Single- or double-leaf commercial swing doors are common for office entrances, internal access points, and secondary facade openings.
Heavy-duty hardware can be selected for high-frequency use.
A fire rated curtain wall commercial door requires special consideration because fire performance is determined by the tested and approved door assembly, frame, glazing, hardware, seals, and installation configuration.
A standard aluminum commercial door should not be described as fire-rated simply because it is installed within a fire-related area. The complete assembly must meet the applicable certification and code requirements.
Thermally improved entrance doors are appropriate for conditioned commercial buildings where energy performance is important.
They may combine thermally broken profiles with insulated glazing and enhanced perimeter seals.
Shopping centers require durable entrance systems capable of handling heavy pedestrian traffic.
Curtain wall entrances can combine large transparent areas with automatic or manually operated commercial doors, creating open and inviting retail environments.
Modern office towers often use large glazed facades to maximize daylight and create a contemporary corporate image.
Integrated doors can maintain consistent facade modules around main entrances and employee access points.
Commercial plazas commonly combine retail, restaurants, offices, and public circulation.
A coordinated facade system provides flexibility for multiple door configurations while maintaining a consistent architectural language.
Hotels place particular emphasis on entrance aesthetics, weather protection, security, and durability.
Large glazed entrances can be integrated with curtain wall systems around reception areas, lobby entrances, and connecting spaces.
Transportation buildings have extremely demanding access requirements.
High-traffic commercial doors should be selected for durability, accessibility, controlled access, and frequent operation. Automatic systems are often appropriate.
A high-rise building curtain wall access door must be considered in relation to wind pressure, facade movement, water management, structural connections, and maintenance requirements.
Door dimensions and hardware should be verified against the expected environmental and operational conditions.
Headquarters buildings often use distinctive curtain wall facades to communicate a strong corporate identity.
Coordinated doors, glazing, hardware, and aluminum finishes can create a consistent entrance and facade system.
The door and curtain wall should be coordinated during the design phase.
Confirm profile depth, sightline, glass thickness, frame dimensions, mullion locations, and interface details before fabrication.
Where visual continuity is important, use compatible glass specifications throughout the facade.
Consider glass color, reflectivity, visible light transmission, Low-E coating, thickness, and insulated-unit construction.
The door perimeter should connect correctly to the curtain wall's air and water control layers.
Threshold details deserve particular attention because they are vulnerable to water accumulation and pedestrian wear.
Curtain walls and exterior doors are exposed to wind pressure.
The required structural performance depends on building height, location, exposure category, facade geometry, and local engineering requirements.
For high-rise projects, facade engineering calculations should verify the relevant mullion, transom, anchor, glazing, and door components.
Thermal breaks, insulated glazing, spacers, and perimeter seals should be considered as a complete system.
Thermal modeling can help identify potential thermal bridges around door thresholds and frame-to-curtain-wall interfaces.
Depending on the project, buyers may need documentation covering:
Safety glazing
Door hardware
Fire performance
Structural performance
Air and water testing
Accessibility
Energy performance
Certification requirements vary between countries and building types, so project specifications should be confirmed before production.
Even a technically advanced facade can perform poorly if installation is inaccurate.
Installation should control:
Opening dimensions
Vertical and horizontal alignment
Anchor positioning
Joint tolerances
Sealant application
Gasket installation
Drainage paths
Glass setting
Door adjustment
Factory drawings and installation details should be approved before mass production.
Factor | Integrated Curtain Wall + Commercial Door | Independent Ordinary Commercial Door |
|---|---|---|
Facade appearance | Designed as one architectural system | May visually differ from facade |
Profile coordination | High | Often limited |
Glass consistency | Can be coordinated | Depends on separate supplier |
Air and water interfaces | Designed together | Interface requires additional coordination |
Thermal design | Integrated approach possible | Usually evaluated separately |
Hardware selection | Coordinated with facade use | Selected primarily for door function |
Customization | High for project applications | Often based on standard configurations |
Large commercial projects | Well suited | May require additional engineering |
Installation coordination | Centralized system approach | Multiple interfaces |
Procurement | One coordinated facade package possible | Separate purchasing may be required |
An independent commercial door is not inherently unsuitable for commercial construction. The difference is primarily the level of integration and coordination required between the door and surrounding facade.
For developers, facade contractors, distributors, and international procurement teams, product selection should begin with project specifications rather than catalog appearance.
Specify:
Aluminum alloy and profile system
Profile depth
Thermal-break requirements
Surface treatment
Powder coating or anodizing
Color and finish consistency
Request documented values or test reports for applicable requirements, including:
Air infiltration
Water penetration
Structural/wind performance
Thermal performance
Acoustic performance where necessary
Operating-cycle performance for commercial doors
Estimate pedestrian traffic and determine whether standard, heavy-duty, or automatic hardware is appropriate.
Entrance doors in airports, malls, and major office buildings may require substantially different hardware specifications from low-traffic service entrances.
Before placing a bulk order, identify the destination-market requirements.
Depending on the project, this can involve building-code compliance, safety glazing requirements, fire certification, accessibility standards, energy-performance documentation, and facade testing.
An experienced architectural glass and facade manufacturer can often customize the system according to:
Project dimensions
Curtain wall module
Door configuration
Glass specification
Hardware
Aluminum finish
Access control
Branding
Packaging
Installation details
For large projects, approved shop drawings should be treated as an important control document before fabrication.
Before production, define inspection criteria covering:
Profile dimensions
Surface finish
Glass quality
Door alignment
Hardware operation
Gasket installation
Sealant workmanship
Drainage
Packaging
Quantity and labeling
Clear acceptance criteria reduce disputes during delivery and installation.
A well-designed Curtain Wall with Commercial Doors is more than a curtain wall with a door inserted into it. It is a coordinated building-envelope solution in which facade profiles, commercial doors, glass, hardware, seals, drainage, thermal breaks, and structural connections are designed to work together.
For commercial buildings, this integrated approach can deliver consistent architectural appearance while addressing key requirements such as air tightness, water resistance, wind pressure resistance, thermal performance, safety, durability, and everyday accessibility.
The right specification depends on the building type, climate, facade geometry, traffic level, local regulations, energy targets, and architectural objectives. For global project buyers, the most reliable procurement process is to define these requirements early, verify technical documentation, approve shop drawings, and evaluate the complete system rather than selecting doors and curtain wall components independently.
For architects, contractors, developers, and bulk procurement teams, working with an experienced facade and architectural glass manufacturer can simplify system coordination and provide a customized solution for commercial projects ranging from shopping malls and office towers to hotels, transportation facilities, and high-rise developments.
