Modern architectural projects increasingly incorporate specialty-shaped openings to create distinctive facades, maximize natural light, and complement unique building geometries. From elegant arched openings and circular windows to triangular gable designs, custom-shaped fenestration adds architectural character that standard rectangular units cannot always achieve.
An Aluminum Cladding Wood Shaped Window combines the natural appearance of wood with the exterior protection of aluminum. Typically, it features a solid wood or engineered wood interior profile, an exterior aluminum cladding system, and a customized frame geometry designed to match non-standard architectural openings.
The interior wood surface provides warmth, natural texture, and multiple finishing possibilities. On the exterior, aluminum cladding helps protect the underlying wood from rain, UV exposure, moisture, and temperature fluctuations.
This combination makes the aluminum clad wood shaped window an attractive solution for luxury residential projects, distinctive commercial buildings, and high-end renovations where architectural aesthetics and long-term exterior durability are equally important.
One of the main advantages of a wood interior aluminum exterior shaped window is its ability to complement high-end interior design.
Natural wood provides visual warmth and a tactile finish that is difficult to replicate with conventional metal profiles.
Depending on the manufacturer's material options, buyers can select:
Oak: Recognized for its distinctive grain and durability.
Pine: A lightweight option with a relatively uniform appearance.
Mahogany: Offers rich colors and an elegant grain pattern.
Other engineered or solid wood options: Available depending on project specifications.
Interior finishes may include clear protective coatings, natural stains, customized colors, and painted surfaces.
For architects and interior designers, this flexibility helps coordinate specialty-shaped openings with flooring, wall panels, furniture, and other interior materials.
The exterior aluminum layer provides an additional protective barrier around the wood structure.
It helps reduce direct exposure to rain, UV radiation, humidity, and temperature changes, which can otherwise contribute to wood deterioration.
Key benefits include:
Reduced exterior maintenance requirements.
Improved resistance to moisture exposure.
Protection against UV-related surface deterioration.
Corrosion-resistant finishes when properly specified.
Greater flexibility in exterior color and appearance.
Aluminum cladding finishes may include powder coating and PVDF coating systems, depending on the manufacturer's finishing process and project requirements.
However, aluminum cladding does not eliminate the need for proper drainage, sealing, ventilation, and regular inspection.
The defining feature of an Aluminum Cladding Wood Shaped Window is its ability to accommodate non-standard opening geometries.
Depending on fabrication capabilities, available configurations may include:
Arched shaped windows: Suitable for curved architectural openings and traditional building designs.
Circular windows: Frequently used in feature walls and distinctive facade compositions.
Triangular windows: Common in gable ends and vaulted roof spaces.
Trapezoidal windows: Designed for sloped rooflines and irregular facade layouts.
Segmented curved shapes: Used for selected complex architectural geometries.

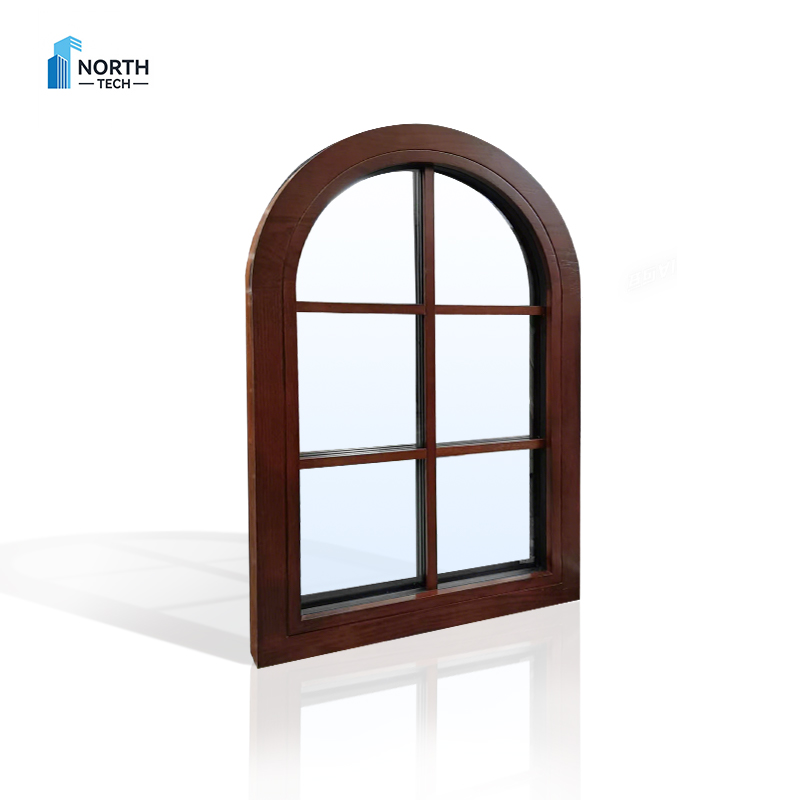

An arched aluminum clad wood window, for example, combines the natural appearance of an interior wood frame with exterior aluminum protection while following the curvature of an architectural opening.
For more complex shapes, the manufacturer must evaluate profile bending, frame joints, glazing geometry, and installation tolerances before confirming production feasibility.
A well-designed aluminum-clad wood system can support strong thermal performance through its wood profile, insulated glazing, weather seals, and optional thermal break components.
Depending on the system design, features may include:
Multi-chamber or insulated profile construction.
Thermal separation between interior and exterior aluminum components.
Double- or triple-glazed insulated glass units.
Low-E glass and argon-filled glazing configurations.
Multi-point locking and compression sealing systems.
The actual thermal performance depends on the complete assembly rather than the frame material alone.
Performance is particularly important for specialty-shaped openings because curved sections, joints, and non-standard corners can create additional sealing challenges.
A properly engineered system should address:
Air infiltration through frame joints and weather seals.
Water penetration around curved and angled sections.
Drainage paths for water entering the glazing rebate.
Acoustic performance through suitable glass and perimeter sealing.
Air and water performance should be verified through appropriate testing of the complete product configuration.
High-end homes often incorporate custom openings to complement unique rooflines, vaulted ceilings, and interior design concepts.
Circular feature windows, large arches, and specialty-shaped glazing can become focal points in living rooms, staircases, and entrance halls.
An aluminum-clad wood shaped window is particularly attractive when homeowners want natural wood finishes indoors without exposing the exterior wood surface directly to weather.
Specialty-shaped openings are frequently found in buildings where architectural identity is a priority.
Chapels may use arched or circular openings, while museums and boutique commercial spaces may incorporate geometric glazing to create distinctive facade compositions.
Custom wood interiors can also complement traditional architectural materials and carefully designed interior environments.
Sloped rooflines and irregular gable geometries often require triangular, trapezoidal, or other specialty-shaped units.
These openings can introduce natural light into attic spaces and upper-level interiors while maintaining the intended exterior architectural proportions.
Renovation projects frequently involve existing masonry openings, historic architectural details, and non-standard structural dimensions.
Custom-shaped units can help preserve the original building appearance while incorporating modern glazing and exterior protection technologies.
For replacement projects, accurate site measurements and coordination with existing structural conditions are especially important.
The wood species affects appearance, dimensional stability, weight, and finishing requirements.
Buyers should evaluate the intended interior environment, desired grain pattern, coating system, and maintenance expectations.
For exterior aluminum cladding, powder coating offers a broad range of colors and finishes, while PVDF coatings may be considered for projects with specific exterior durability and appearance requirements.
Coating selection should follow the manufacturer's specifications and applicable performance requirements.
The glazing specification should match the building's thermal, safety, acoustic, and aesthetic requirements.
Available options may include:
Tempered glass for appropriate safety glazing applications.
Laminated glass for improved post-breakage fragment retention.
Low-E insulated glass for thermal and solar performance.
Ultra-clear glass for reduced green tint and improved transparency.
Double or triple insulating glass units for different climate requirements.
Glass thickness, spacer selection, coating position, and overall IGU configuration must be coordinated with the frame system.
Not every geometry can be manufactured using standard production equipment.
Before confirming an order, buyers should discuss:
Maximum overall frame dimensions.
Minimum and maximum achievable curvature.
Profile bending limitations.
Corner joint and multi-segment connection details.
Glass size and shape limitations.
Transportation and installation constraints.
Large arched units and complex segmented shapes may require specialized tooling and additional fabrication time.
Non-standard openings require careful coordination between the window fabricator, architect, contractor, and structural engineer.
The installation design should consider:
Structural support above and around the opening.
Load transfer to the surrounding building structure.
Head, sill, and jamb flashing details.
Perimeter waterproofing and drainage.
Expansion and movement allowances.
Installation tolerances for irregular openings.
These details are essential for preventing water penetration and ensuring long-term system performance.
For North American projects, buyers should review applicable product performance standards and certification requirements.
NFRC: Provides rating and certification programs for qualifying fenestration products, including U-factor, solar heat gain coefficient (SHGC), and visible transmittance.
AAMA/WDMA/CSA 101/I.S.2/A440: The North American Fenestration Standard (NAFS), covering performance requirements for qualifying window, door, and skylight products.
ASTM E283: Test method for determining air leakage through exterior windows, curtain walls, and doors.
ASTM E331: Test method for determining water penetration under static air pressure differences.
Buyers should verify that the specific custom shape and product configuration fall within the tested or certified scope. Standard rectangular product ratings should not automatically be applied to specialty-shaped units.
Comparison | Aluminum-Clad Wood | Pure Wood | All-Aluminum |
|---|---|---|---|
Interior appearance | Natural wood | Natural wood | Metal finish |
Exterior protection | Aluminum cladding | Exposed wood finish | Aluminum |
Maintenance | Lower exterior wood maintenance | Higher exterior maintenance | Generally low |
Thermal characteristics | Depends on wood and thermal break design | Good potential | Depends on thermal break |
Custom shape capability | Manufacturer-dependent | Manufacturer-dependent | Manufacturer-dependent |
Initial cost | Generally higher | Varies | Varies |
Design appeal | Warm interior, durable exterior | Traditional natural appearance | Contemporary appearance |
Aluminum-clad wood vs. pure wood: Pure wood offers an authentic natural appearance on both sides, but exposed exterior wood requires more frequent maintenance and protective finishing. Aluminum cladding reduces direct weather exposure while preserving the interior wood aesthetic.
Aluminum-clad wood vs. all-aluminum: All-aluminum systems are often suitable for contemporary architectural designs and demanding exterior applications. Aluminum-clad wood provides a different design advantage: natural wood interiors combined with exterior aluminum protection.
Neither system has a universally longer service life. Longevity depends on material quality, coating specifications, fabrication, drainage, installation, and maintenance.
Yes. Depending on the manufacturer's production capabilities, options include arched, circular, triangular, trapezoidal, and selected segmented curved designs. Complex geometries require technical drawings and feasibility confirmation before production.
Generally, yes. Interior wood can be customized with different stains, clear finishes, or paint colors, while exterior aluminum cladding can be specified with separate powder-coated or other approved finishes.
They can achieve good thermal performance when combined with suitable profile construction, thermal breaks, insulated glazing, and effective weather seals. Actual U-factor and SHGC ratings depend on the complete tested configuration.
Manufacturers typically need architectural drawings, opening dimensions, shape geometry, required quantities, wood species, exterior finish preferences, glazing specifications, and project location. Section details and installation requirements are also helpful.
An Aluminum Cladding Wood Shaped Window is a practical choice for architectural projects that require distinctive non-rectangular openings, natural wood interiors, and weather-resistant exterior finishes.
It is particularly suitable for luxury custom homes, vaulted spaces, gable-end openings, boutique commercial buildings, and high-end renovation projects where standard window geometries cannot meet the design requirements.
Successful project delivery depends on early coordination between architects, contractors, and fabricators. Shape feasibility, thermal ratings, structural support, flashing, drainage, and installation details must all be validated through manufacturer design, project engineering, and applicable local building codes.
