The architectural shift toward expansive, unobstructed indoor-outdoor living spaces has made large-format glazing a standard requirement in high-end residential and commercial builds. Achieving a massive clear opening of 20 to 30 feet without a wall pocket requires stacking multiple heavy glass panels in a single direction. This creates complex engineering challenges regarding track depth, header deflection, and weather sealing. To successfully specify and install these systems, architects and builders must understand the precise configuration mechanics, structural prerequisites, and material limitations of multi-track sliding systems. You cannot simply drop a massive multi-panel unit into a standard rough opening. The framing, floor leveling, and load distribution require exact calculations to prevent operational failure. Understanding how these panels interlock, glide, and stack dictates the success of the entire building envelope.
Track Depth Scales with Panel Count: One-direction stacking requires a dedicated track for each operable panel, directly impacting the required jamb depth and floor transition planning.
Header Deflection is the Primary Failure Point: Multi-panel systems are highly sensitive to load-bearing shifts; structural headers must be engineered to strict deflection limits (typically L/720) to prevent panel binding.
Material Selection Dictates Performance: Aluminum multi panel sliding doors offer the highest strength-to-weight ratio, allowing for narrower sightlines and larger individual panel sizes without compromising structural integrity.
Drainage and Sill Selection Require Trade-offs: Flush sills provide seamless transitions but require complex sub-surface drainage, whereas weather-rated raised sills offer better water penetration resistance at the cost of a stepped transition.
Screening and Wind Loads Influence Track Design: Expansive openings require early integration of insect screens and structural reinforcement to meet local high-velocity wind-load codes.
Buyers need to understand exactly how multiple panels occupy the same opening and transition into a stacked position without colliding or derailing. The configuration dictates both the visual outcome and the structural framing requirements. When you deal with massive glass units, the physics of moving them smoothly across a floor track requires precision engineering.
One-direction stacking operates sequentially. The primary lead panel pulls the subsequent panels via interlocking stiles known as snubbers. When you pull the active door, it travels along its dedicated rail until the snubber engages the adjacent panel, pulling it along. Heavy-duty applications require precision-bearing tandem rollers to ensure smooth operation across multi track sliding doors. In their final resting state, the panels align side-by-side at one end of the opening. They occupy the space of a single panel width, leaving the rest of the expanse completely clear. The rollers must distribute the weight evenly to prevent track deformation over time.

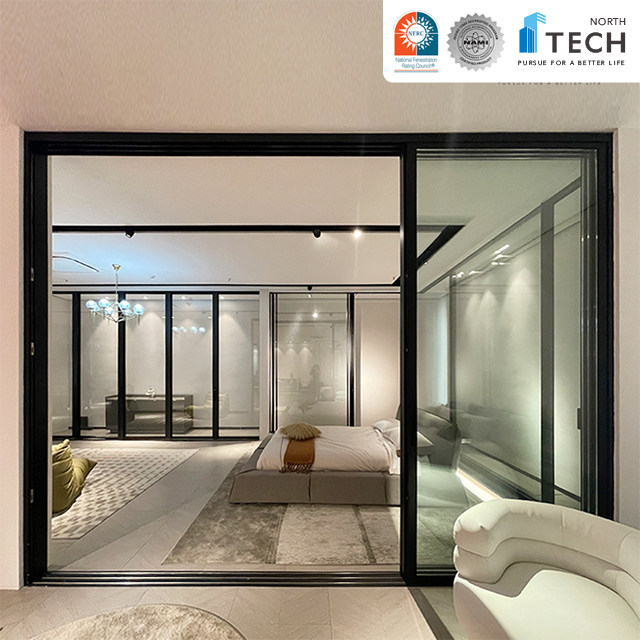

One-direction stacking is often chosen over pocket systems based on structural realities. Many buildings lack the available wall space for a pocket, or the adjacent walls contain structural shear elements that cannot be hollowed out. The visual trade-off is straightforward. Stacking systems leave one panel width visible in the opening. Pocket doors disappear entirely but require significantly more complex wall framing and wider headers to span the hidden cavity.
Configuration Type | Structural Framing Requirement | Visual Impact When Open | Maintenance Accessibility |
|---|---|---|---|
One-Direction Stacking | Standard rough opening width | One panel width remains visible | High (tracks and rollers exposed) |
Pocket System | Double the rough opening width | Completely hidden in wall | Low (requires wall access panels) |
Bi-Fold System | Standard rough opening width | Bulky accordion stack protrudes | Medium (hinges require lubrication) |
Multi-track stacking systems differ drastically from bi-fold systems in their visual profile. Bi-folds cluster bulky panel frames when open, creating a thick accordion stack that protrudes outward or inward. Multi-track panels stack cleanly parallel to each other within the jamb footprint. Slide-and-fold systems operate differently, where individual panels slide along a single track and swing open 90 degrees at the terminus to stack. True multi-track systems keep panels on parallel tracks at all times, providing superior stability for massive glass weights.

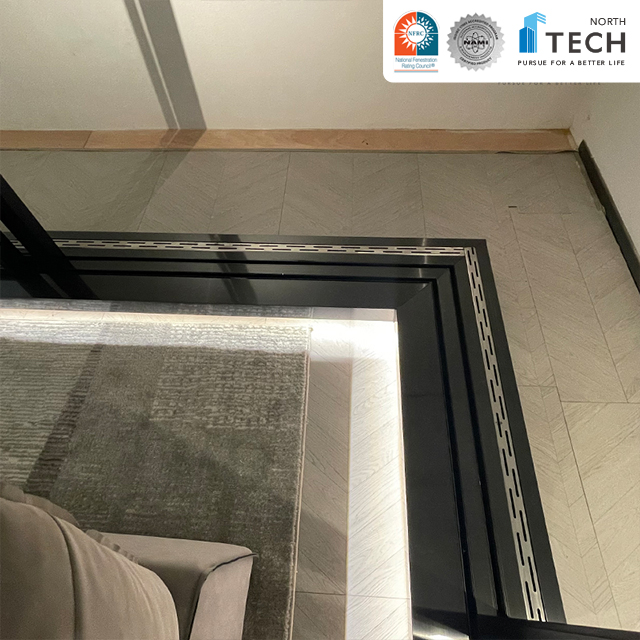

Evaluating the floor-level hardware is essential. The sill design dictates both the aesthetic flow of the space and the long-term weather performance of the building envelope. Water management at the sill is the most common point of failure in large sliding systems.
There is a direct mathematical relationship between panel quantity and overall track depth. A four-panel system requires a four-track extrusion, which often exceeds 8 to 10 inches in depth. When configuring custom multi track sliding doors, integrating fixed panels alongside operable panels helps optimize the track footprint. The fixed panel shares the outermost or innermost track, acting as the anchor point for the stacking sequence.
Determine the total clear opening width required by the client.
Divide the total width by the maximum allowable panel width to find the panel count.
Multiply the panel count by the individual track extrusion width (typically 2 to 2.5 inches per track).
Add the required clearances for interior and exterior finishes to calculate the final jamb depth.
Flush sills provide a highly desirable seamless transition between indoor and outdoor floors. However, they require sub-sill drainage pans, weep holes, and meticulous waterproofing to mitigate the risk of water ingress in high-exposure environments. Raised or water-return sills offer distinct structural advantages for high wind-load and heavy rain areas. The trade-off involves sacrificing a perfectly flat floor transition for superior weatherproofing and water penetration resistance.
Bug and insect screening for massive 20-to-30-foot openings must be planned during the initial framing stage. Adding an extra dedicated outer track for sliding screen panels increases the overall jamb depth significantly. Alternatively, recessing non-pleated, heavy-duty retractable screens into the jamb provides a cleaner look but requires precise cavity framing to conceal the screen cassette.
Material choice is a technical decision. The structural demands of oversized glazing require specific material properties to ensure longevity and operability. Wood warps, and vinyl sags under extreme weight. Aluminum provides the necessary rigidity.
Aluminum is the industry standard for oversized multi-track sliding doors compared to vinyl or wood. Its superior strength-to-weight ratio allows for narrower sightlines while supporting massive glass units. Specifying aluminum multi panel sliding doors prevents warping and thermal bowing under extreme solar heat gain, enabling maximum panel sizing that can exceed 12 feet in height.
Historically, metal doors suffered from poor thermal performance. Modern polyamide thermal break technology separates the interior and exterior aluminum extrusions, stopping conductive heat transfer. Thermally broken aluminum frames, combined with low-E double or triple glazing, allow massive multi-panel configurations to meet stringent energy codes like Title 24 and the IECC.
High-exposure zones, such as Florida hurricane zones, require specific performance standards. Multi-panel aluminum systems are reinforced with internal steel stiffeners at the interlocking stiles. This reinforcement allows the doors to resist high positive and negative design pressures, achieving the necessary DP ratings for coastal compliance.
The unseen framing requirements dictate the success or failure of the installation. A perfectly manufactured door will fail if the surrounding structure is inadequate. You must coordinate with structural engineers early in the design phase.
Multi-track systems are bottom-rolling, meaning the floor bears the weight of the glass. However, the header remains critical. It must resist vertical deflection from the roof or floor above to prevent crushing the top track. Standard engineering tolerances require a maximum allowable deflection of 1/8 inch over the entire span. Excessive deflection causes the top track to pinch the panels, leading to binding and inoperability.
Bottom-rolling systems demand strict tolerances for floor leveling. Installers often require laser-leveling to within 1/16 inch over a 20-foot span. The installation sequence must prioritize the sub-sill pan and waterproofing membranes, ensuring flawless integration with the primary building envelope to prevent foundational water damage.
Shoot a laser line across the entire rough opening floor to identify high and low spots.
Apply non-shrink structural grout or self-leveling underlayment to achieve a perfectly flat substrate.
Install a custom-fabricated stainless steel or copper sub-sill pan with a rigid back dam.
Seal all fasteners penetrating the sill pan with high-grade polyurethane sealant.
The fixed anchor panel acts as the physical stop for the entire sliding system. It must be rigidly stabilized. During installation, field adjustments are necessary. Technicians must tweak tandem roller heights to ensure panels are perfectly plumb. Aligning the multi-point locking latch and keeper ensures secure structural engagement when the doors are closed.
Long-term maintenance and operational realities heavily influence the overall value of the installation. Proactive planning prevents common functional failures. Multi-Track Sliding Doors require ongoing attention to perform correctly over decades.
Premature roller failure is typically caused by debris in tracks, improper weight distribution, or building settling. Mitigation tactics include specifying stainless steel tracks and precision-sealed bearings. Implementing regular maintenance schedules to clear the bottom track of dirt and ensuring initial precision installation prevents uneven wear on the roller mechanisms.
The interlocking stiles are vulnerable points when panels are in the closed position. Specifying multi-point locking systems pulls the panels tightly together. High-performance Q-Lon or brush weatherstripping must be integrated at the vertical seams to prevent air and water infiltration, ensuring the system remains airtight under pressure.
One-direction stacking multi-track systems are the optimal solution for expansive openings where wall pockets are structurally impossible. Base your final system selection on the required track depth, the structural capacity of the planned header, and the specific weather exposure of the site.
Consult with a structural engineer to verify header deflection limits before ordering any materials.
Request detailed shop drawings for track depth integration to ensure floor transitions align perfectly with interior finishes.
Source quotes from manufacturers specializing in thermally broken aluminum systems to guarantee long-term performance.
Schedule a pre-installation meeting with the framing contractor and the door installer to verify rough opening dimensions.
A: Custom systems can easily exceed 30 feet in total width. This is achieved by utilizing 5 or 6 independent tracks, allowing multiple large panels to stack sequentially to one side of the opening.
A: Yes. Large-format systems are almost exclusively bottom-rolling to support the immense weight of the insulated glass. A robust bottom track is required to house the rollers and distribute the load into the floor.
A: Stacking doors gather at one side of the visible opening, leaving one panel width exposed. Pocket doors slide on extended tracks into a hidden wall cavity, disappearing completely from view.
A: A 4-panel system requires a 4-track extrusion. Average dimensions typically range from 6 to 9 inches in total depth, depending on the manufacturer and the thickness of the individual panels.
A: Yes, provided they are manufactured with polyamide thermal breaks. When combined with high-performance insulated glass units and low-E coatings, they meet strict modern energy codes.
