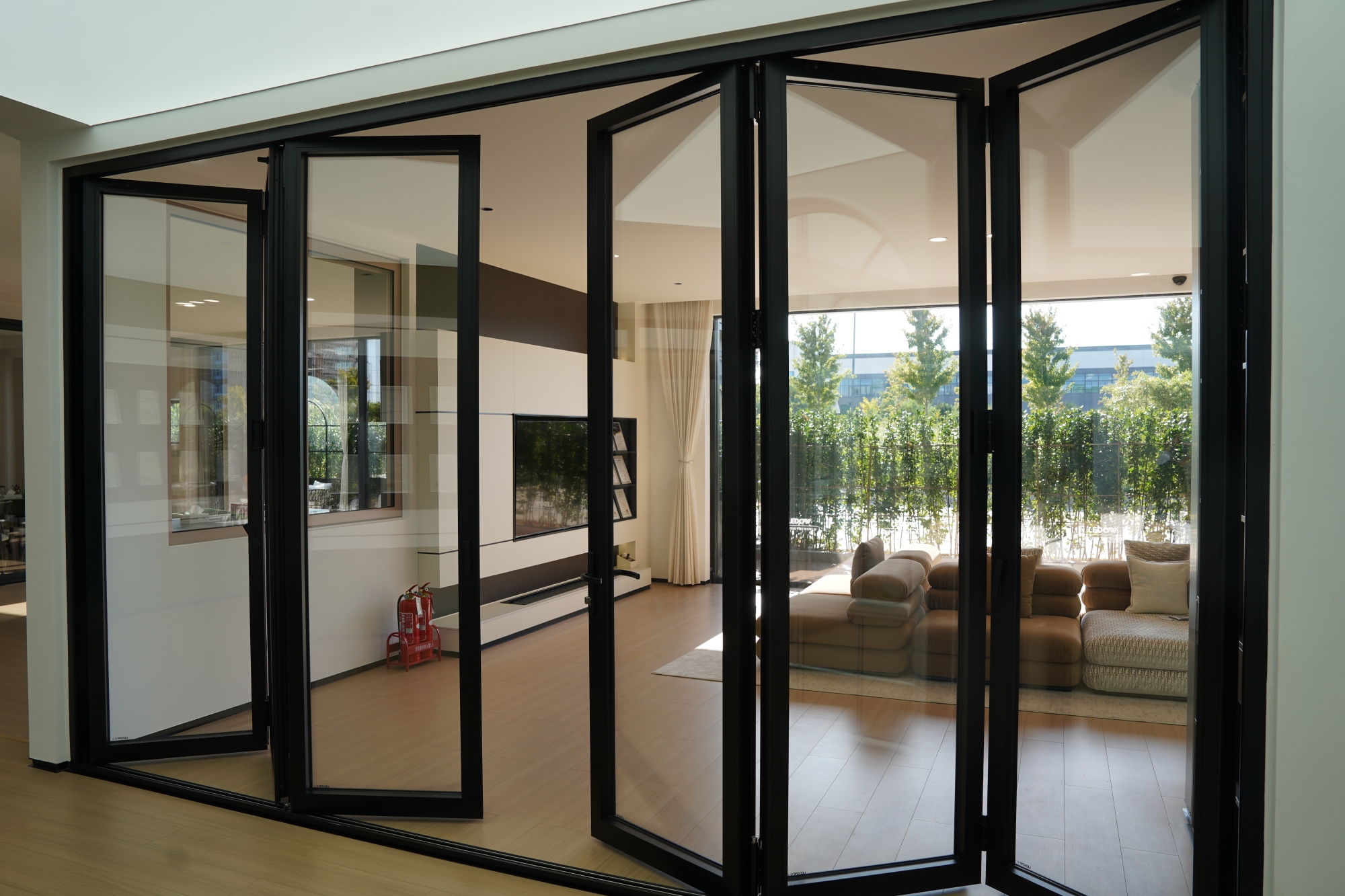

An aluminum folding door is a practical way to create wider openings, improve access between indoor and outdoor areas, and bring more natural light into a building. Also known as a bi-fold aluminum door, this system uses several connected door panels that fold and stack to one or both sides when opened.
Compared with conventional hinged doors, an aluminum folding door can make better use of limited opening space while providing a contemporary architectural appearance. Modern aluminum profiles, insulated glass, weather-resistant hardware, and improved sealing systems have also made folding doors suitable for both residential and commercial applications.
For homeowners, the priorities may be daylight, ventilation, and an easy connection to a patio or garden. Builders and project buyers may focus more on structural performance, thermal insulation, hardware durability, customization, and long-term maintenance. Choosing the right system requires considering all of these factors together.
An aluminum folding door consists of multiple door leaves connected by hinges and mounted on a track system. When opened, the panels fold against each other and move toward the side of the opening.
The aluminum frame provides the structural framework, while glass usually occupies most of the panel area. Depending on the design, the panels can be configured to fold inward or outward and stack on one or both sides.
Unlike a traditional sliding door, which normally moves panels horizontally past one another, a folding system allows multiple panels to move together and create a much wider clear opening.
This makes folding doors particularly useful where homeowners or architects want to remove the visual and physical separation between interior and exterior spaces.
One of the biggest advantages of an aluminum folding door is its ability to create a large opening without requiring the swing clearance of multiple conventional hinged doors.
When closed, several panels provide a continuous glazed opening. When opened, they fold into a compact stack near the side of the frame.
This is particularly useful for patios, balconies, terraces, gardens, and entertainment areas where maximizing usable space is important.
For restaurants and commercial spaces, folding systems can also allow an indoor seating area to connect more directly with an outdoor dining space.
Aluminum is widely used in architectural door systems because it offers a strong strength-to-weight ratio and good resistance to corrosion when properly finished.
Quality aluminum profiles can support relatively large glazed panels while maintaining a clean frame design.
The surface can also be finished using powder coating, anodizing, or other suitable treatments, depending on the manufacturer's system and the project's requirements.
For coastal or demanding environments, the finish and hardware specification should be selected according to the local exposure conditions.
A well-designed exterior aluminum folding door needs to deal with rain, wind, temperature changes, and repeated operation.
Weather performance depends on more than the aluminum frame. Drainage channels, gaskets, seals, interlocking profiles, frame design, and installation all contribute to resistance against water and air infiltration.
For exposed applications, buyers should ask for tested air, water, and wind-load performance where applicable rather than relying on general claims such as “weatherproof.”
Large glazed openings can influence a building's heating and cooling loads significantly. The right door configuration can help improve thermal performance.
Energy efficient aluminum folding doors typically combine thermally improved aluminum profiles with insulated glass and appropriate sealing systems.
Thermal-break aluminum profiles can reduce heat transfer through the frame. Double or triple insulated glass can further improve the overall thermal performance of the door.
However, the actual energy performance depends on the complete door assembly, including frame, glass, seals, installation, and climate.
For projects with specific energy targets, request documented U-factor/U-value and other relevant performance data for the complete door system.
Large glass panels and slim aluminum profiles work well with contemporary architectural styles.
Modern aluminum folding doors can provide extensive views while maintaining a relatively clean frame appearance. They can complement minimalist villas, modern apartments, restaurants, hotels, offices, and commercial buildings.
Available finishes may include common neutral colors as well as customized architectural finishes, depending on the manufacturer.
Aluminum does not require the same type of routine painting or treatment associated with many traditional timber doors.
Routine maintenance generally focuses on cleaning the frame and glass, checking seals, and keeping tracks and hardware free from excessive dirt.
The finish quality still matters. Properly specified and professionally applied surface treatments can help maintain the appearance of the door over time.
An aluminum folding patio door is a popular choice for homes where the living room, dining area, kitchen, and outdoor space need a strong visual connection.
When fully opened, multiple panels can create a broad passage to a garden, terrace, or pool area.
For residential projects, consider the direction in which the panels stack and whether furniture, walls, columns, or landscaping could interfere with operation.
Folding systems can be used for balcony openings where a wide access area is desired.
However, the structural opening, wind exposure, drainage, and building regulations should be evaluated before installation, particularly for high-rise projects.
Large glazed openings are common in contemporary villas. An aluminum folding door can combine indoor living space with gardens, terraces, courtyards, or pool areas.
For premium residential projects, buyers may combine thermally broken aluminum profiles with low-E insulated glass to balance aesthetics and energy performance.
Folding doors can divide meeting rooms, lounges, reception areas, and flexible workspaces.
They can be especially useful where spaces need to switch between private and open configurations.
Restaurants, cafes, hotels, and resorts can use folding doors to connect indoor dining areas with terraces and outdoor seating.
In these applications, hardware durability is particularly important because the doors may be opened and closed frequently throughout the day.
Folding systems can also be used in retail and commercial environments where a large opening is required.
The final specification should consider security, glazing safety, wind load, accessibility, hardware durability, and local building requirements.
Ask about the aluminum alloy, profile dimensions, wall thickness, surface finish, and whether the profiles use a thermal break.
The correct profile should be selected according to panel size, glass weight, wind conditions, and structural requirements.
Glass occupies much of the visible area of a folding door, so its specification has a major impact on performance.
Common options include:
Double insulated glass
Low-E insulated glass
Tempered glass
Laminated safety glass
Low-iron ultra-clear glass
Acoustic glazing
Decorative or tinted glass
For doors in locations where impact is possible, safety glazing should be specified according to applicable local codes.
Folding doors depend heavily on their hinges, rollers, locks, handles, and track system.
High-quality hardware should be appropriately rated for the weight and frequency of operation.
For large panels, the manufacturer should confirm the maximum recommended panel dimensions and load capacity rather than simply offering a standard hardware configuration.
Look for continuous gaskets, correctly designed drainage paths, weather seals, and properly engineered frame joints.
The sill design is particularly important for exterior applications because it must manage water while allowing smooth door operation.
An aluminum folding door can provide useful acoustic performance when combined with appropriate insulated or laminated glass and effective seals.
However, acoustic performance should be evaluated based on tested data for the complete assembly. The glass alone does not determine the final sound reduction.
Image alt text: High-quality aluminum folding door components including thermal-break frame, insulated glass, rollers and seals
Before ordering an aluminum folding door, evaluate the following points.
Confirm the width, height, wall condition, opening tolerance, and finished floor level.
Large folding systems require accurate dimensions because even relatively small installation errors can affect panel alignment and operation.
Determine how many panels are required and where they should stack.
Possible configurations vary by system and may include panels folding to one side, both sides, or combinations of fixed and folding panels.
Choose the glass according to the project's priorities.
For thermal performance, consider Low-E insulated glass. For safety, tempered or laminated glass may be appropriate. For maximum visual neutrality, low-iron glass can be considered.
A door facing strong sun, heavy rain, high wind, or a coastal environment may require a different specification from an interior folding partition.
Discuss local environmental conditions with the manufacturer before finalizing the system.
If energy efficiency is important, ask for the complete door's thermal performance rather than evaluating the aluminum profile alone.
Ask about roller materials, hinge construction, lock mechanisms, expected service life, replacement parts, and warranty terms.
A well-manufactured door can still perform poorly if installed incorrectly.
Check whether the manufacturer provides installation drawings, structural requirements, adjustment instructions, and technical support.
Regular maintenance can help preserve smooth operation and extend the service life of an aluminum folding door.
Clean the aluminum profiles with mild soap and water. Avoid abrasive cleaners that may damage the surface finish.
Keep the track and drainage channels free of leaves, dust, sand, and other debris. Excessive dirt can interfere with rollers and prevent proper drainage.
Check hinges, handles, rollers, and locks periodically. If movement becomes unusually stiff, identify the cause rather than forcing the panels.
Inspect weather seals and gaskets for visible damage or deterioration.
For commercial doors that receive heavy daily use, establish a scheduled inspection program based on operating frequency and the hardware manufacturer's recommendations.
Yes. They are commonly used for patios, balconies, terraces, villas, restaurants, and commercial openings. The system should be selected according to local wind, rain, temperature, and installation conditions.
They can be. Thermal-break aluminum profiles, Low-E insulated glass, quality seals, and correct installation can significantly improve thermal performance compared with basic non-thermally improved systems.
Sliding doors typically move panels horizontally past one another, while folding doors connect multiple panels that fold and stack together. Folding systems can provide a wider clear opening.
They can provide good security when equipped with suitable locking hardware, safety glass, robust profiles, and properly designed frames. Security performance varies by system and should be evaluated according to project requirements.
Yes. Manufacturers can typically customize dimensions, panel numbers, opening configurations, frame colors, glass specifications, hardware, and other details according to the system's technical limits.
A properly engineered system can provide good resistance to water infiltration, but performance depends on the sill, drainage, seals, frame joints, installation, and weather exposure. Ask for tested water-resistance data when required.
Yes. Double insulated glass is commonly used where improved thermal and acoustic performance is required. The hardware and aluminum profile must be capable of supporting the additional glass weight.
Generally, maintenance is straightforward. Regular cleaning, track inspection, hardware checks, and seal inspection are usually sufficient for normal residential use.
The number depends on the specific system, opening dimensions, panel weight, hardware capacity, and stacking configuration. A manufacturer should confirm the maximum recommended configuration for each project.
Ask for profile specifications, glass options, maximum panel sizes, hardware details, thermal and weather-performance data, applicable certifications, installation requirements, warranty conditions, and project references where appropriate.
An aluminum folding door can provide a practical combination of wide openings, contemporary appearance, durable construction, and flexible indoor-outdoor connectivity. For residential projects, it can transform patios, balconies, gardens, and living areas. For commercial projects, it can create adaptable openings for restaurants, offices, hotels, and storefronts.
The most important point is that door performance comes from the complete system—not aluminum alone. Frame design, thermal breaks, glass, hardware, weather seals, drainage, fabrication accuracy, and installation all contribute to the final result.
For homeowners, builders, and commercial project buyers, the best approach is to define the opening dimensions, climate conditions, energy requirements, safety standards, glass performance, and operating frequency before selecting a system. A professional manufacturer can then recommend an aluminum folding door configuration that balances appearance, performance, durability, and project cost.
