A window wall system creates a vertical glass partition that fits between floor slabs in a building. You gain a modern look and improved natural light with this solution. Many architects and builders choose it because it uses less material, installs quickly from inside, helps block sound between floors, and allows for flexible designs. If you want efficient construction and strong acoustic performance, this system offers practical benefits for your project.
Window wall systems create modern glass partitions between floor slabs, enhancing natural light and aesthetics.
These systems are non-load bearing, making installation easier and safer from inside the building.
Window wall systems provide strong acoustic separation, ideal for residential and hotel projects.
Prefabrication of window wall units speeds up installation and reduces the risk of errors on-site.
Choosing the right materials and technologies can significantly improve energy efficiency in window wall systems.
Regular maintenance, including seal inspections and cleaning, is crucial for long-term performance and durability.
Window wall systems are best suited for mid-rise buildings, offering flexibility in design and installation.
Always check local building codes to ensure compliance and safety when selecting window wall systems.

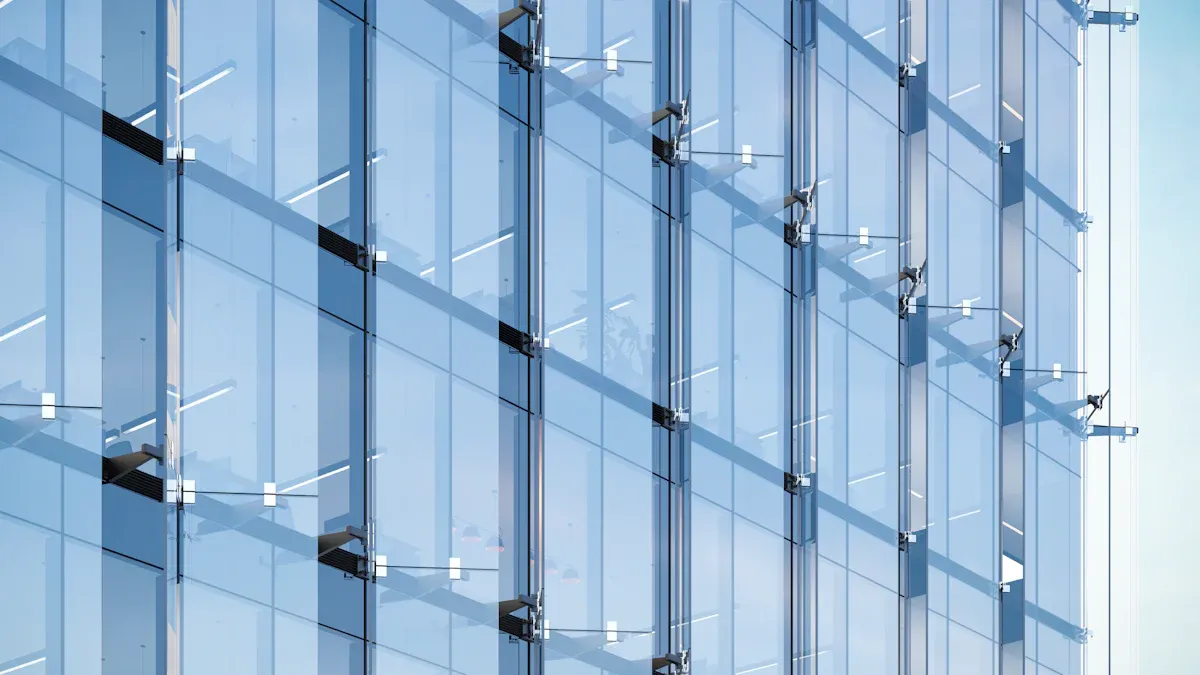

A window wall system creates a vertical glass partition that you install between the floor slabs of a building. This system does not support the building’s weight, so you call it non-load bearing. You often see it prefabricated in sections, which makes it easier and faster to install on site. Most window wall systems reach up to 12 feet high, making them suitable for many modern buildings.
Window wall systems are evaluated for seismic-related performance according to AAMA 501.4, which assesses their ability to maintain structural integrity during interstory drift, a critical factor in high-rise structures during seismic events. The criteria for success include no glass breakage, no significant damage to framing members, and maintained resistance to water and air infiltration.
You will notice that a window wall system stands out from other façade solutions because it sits between the floor slabs, not in front of them. This design allows you to install the system from inside the building, which can improve safety and efficiency. You also get strong acoustic separation between floors, which is important in residential and hotel projects.
Here is a table that highlights the key features that set window wall systems apart from other façade options:
Feature | Description |
|---|---|
Connectors | Specially designed to control glue distribution at corners for strong joints. |
Rigidity | High rigidity ensures structural integrity. |
Expansion Joints | Unique joints compensate for horizontal and vertical movements. |
Air and Water Tightness | Achieves 1,200 Pa, ensuring protection against weather elements. |
Wind Resistance | Rated at ±2,000 Pa, suitable for various environmental conditions. |
Thermal Insulation | Uf value of 1.6 W/(m²K) for energy efficiency. |
Safety Tests | Passes tests up to ±3,000 Pa and impact resistance class I5/E5. |
Fire Safety | Meets fire safety certifications, ensuring durability in emergencies. |
Design Flexibility | Supports various glazing options and decorative elements. |
A window wall system uses several main components that work together to create a strong and attractive façade. You can see how each part plays a role in the system’s performance.
The framing forms the backbone of the window wall system. You usually find aluminum frames because they are lightweight, strong, and resistant to corrosion. The frames hold the glass panels in place and connect the system to the building’s structure. Horizontal aluminum channels at the top allow for vertical movement, which helps the system handle building shifts and temperature changes.
Glass panels fill the spaces between the frames. You can choose from different types of glass, such as clear, tinted, or insulated, depending on your needs for light, privacy, and energy efficiency. These panels let in natural light and give the building a modern look. Some window wall systems include operable windows, so you can open them for ventilation.
Anchoring methods secure the window wall system to the building. You attach the frames to the floor slabs using brackets or anchors. This method keeps the system stable and helps it resist wind, water, and seismic forces. Proper anchoring is important for safety and long-term performance.
You can find several types of window wall systems in the construction industry. Each type offers unique benefits for different building needs.
Window walls are a façade system similar to curtain walls, primarily made of glass windows.
They consist of aluminum framing with large glass panels.
You often see them in commercial buildings like offices, hotels, and residential towers.
Installation: Curtain walls hang from the building’s structure and require complex installation. Window wall systems sit between floor slabs and are easier to install.
Structure: Curtain walls handle higher wind loads and use deeper framing. Window wall systems are smaller and do not need pressure plates, so they are less robust.
Water Drainage: Curtain walls have individual drainage for each glass lite. Window wall systems use a water head in the flashing at the bottom for drainage.
You will find that curtain walls provide better performance against harsh weather because of their strong design. Window wall systems, on the other hand, offer a cost-effective and simple solution for mid-rise buildings. You can choose the system that best fits your project’s needs.
You will find that the installation of a window wall system uses prefabricated units, which helps speed up construction and improve quality. Most systems arrive at the site pre-assembled, so you only need to secure them between the floor slabs. This method reduces the risk of mistakes and keeps your project on schedule.
Here is a table that shows common installation methods and their descriptions:
Installation Method | Description |
|---|---|
Concealed anchors, clips | Fasten to the sides, top, and bottom of the wall framing, securing to wall studs, blocking, and headers. |
Nailing flanges | Secure to the wall through the face of the sheathing on the exterior. |
Flashing and water barrier | Anchors and clips require flashing to return into the window opening, while nailing flanges use a shingled flashing method. |
You may face some challenges during installation. These include handling large glass panels, ensuring proper sealing, and managing logistics. You also need to avoid design errors and prevent issues like thermal cracking, water infiltration, and condensation.
Tip: Prefabrication leads to high installation speed and ensures consistent quality. You can reduce human error and improve performance against air and water infiltration.
When you install a window wall system, you must coordinate the anchorage with the building’s structure. Perimeter frame anchors may need steel embeds or extra supports. You should check the depth and spacing of fasteners to avoid conflicts with building elements like prestressed slab tendons.
Evidence Description | Key Points |
|---|---|
Anchorage Coordination | Perimeter frame anchors must be coordinated with the building structure to confirm the need for steel embeds or additional supports. |
Installation Considerations | Fastener embedment depth and edge spacing must avoid conflicts with building structures, such as prestressed slab tendons. |
Non-load Bearing Nature | Window walls are non-load bearing and sit between floor slabs, which influences fire-stopping and noise transmittance concerns. |
You will anchor the system at the head and sill, then seal it with caulking. Most systems are pre-assembled in a shop before shipping. The way you integrate the system with weather barriers depends on the glazing system you choose.
A window wall system offers strong performance in thermal, acoustic, water, and air control. Laminated glass helps reduce noise by minimizing resonance, which improves Sound Transmission Class (STC) ratings. You will notice that temperature can affect sound transmission, but laminated glass performs better in warmer conditions.
You can expect these benefits:
Improved acoustic performance with laminated glass
Consistent thermal insulation for energy efficiency
Strong resistance to water and air infiltration due to factory-controlled assembly
Note: Prefabricated units provide excellent performance against air and water leaks. You can trust the system to maintain comfort and safety in your building.
By choosing a window wall system, you gain efficient installation, reliable structural integration, and high performance in key areas that matter for modern buildings.

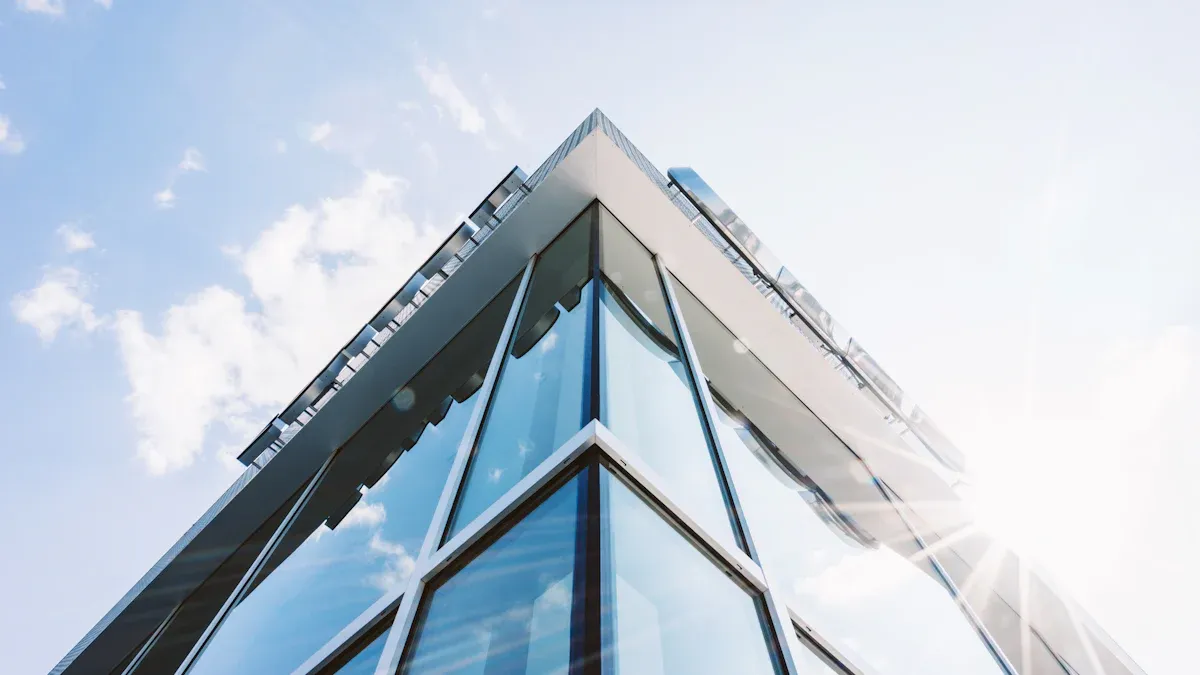

You need to understand how window wall systems and curtain walls differ in design and installation. Curtain walls hang from the structure and do not rely on floor slabs for support. Window wall systems sit between floor slabs and use them for support. Curtain walls create a smooth, uniform glass exterior that stretches across multiple floors. Window wall systems give your building a segmented look, with glass panels separated by floor slabs.
Here is a table that shows the main differences:
Aspect | Curtain Wall | Window Wall |
|---|---|---|
Structural Support | Independent, hangs off the structure | Supported by the floor slabs |
Installation & Cost | Needs specialized labor and more time | Easier and faster with pre-fabricated units |
Aesthetic Considerations | Seamless glass exterior for large facades | Compartmentalized look, best for smaller buildings |
Energy Efficiency | Superior insulation and thermal performance | Good performance with proper materials |
Height Flexibility | Spans multiple floors, ideal for tall buildings | Limited to single-floor spans |
You will see curtain walls anchored to the face of floor slabs, which gives your building a sleek appearance. Window wall systems install between slabs, making them easier to handle and less intrusive during construction.
Performance matters when you choose a façade system. Curtain walls usually offer better thermal performance because they minimize thermal bridging at slab edges. They use thicker insulated glass units and advanced glazing technologies. You get superior energy efficiency and reduced heat transfer with curtain walls. Window wall systems have improved over time, using thermal breaks and spandrel designs to boost performance. Both systems reduce sound transmission, but window wall systems work well in residential and office settings.
Curtain walls provide enhanced energy efficiency and sustainability.
Window wall systems may lead to higher energy bills if you do not use advanced materials.
Curtain walls bypass floor slabs, which helps prevent heat loss.
Modern window wall designs use new technology to improve thermal performance.
Both systems offer good sound insulation, but window wall systems excel in spaces where privacy and quiet matter.
Tip: If you want maximum energy savings, curtain walls are often the better choice. For strong acoustic performance, window wall systems can meet your needs.
You should select a system based on your project type and goals. Window wall systems fit best in residential towers, hotels, and mid-rise mixed-use buildings. You gain faster installation and less disruption, especially in retrofit projects. If you value operable windows and natural ventilation, window wall systems offer more flexibility. Curtain walls suit high-rise buildings and projects that require large, seamless glass surfaces.
Here is a table to help you decide:
Scenario Type | Advantage |
|---|---|
Residential towers, hotels, mid-rise buildings | Window wall systems are ideal |
Faster installation and less disruption | Window wall systems offer these benefits |
Need for operable windows or ventilation | Window wall systems provide better airflow |
Retrofit projects | Window wall systems are less intrusive |
Desire for multi-story seamless glass | Curtain walls deliver this look |
Focus on energy efficiency and sustainability | Curtain walls are preferred |
You can match your building’s needs to the right system. If you want a clean look without multi-story glazing, choose a window wall system. For tall buildings and maximum energy efficiency, curtain walls are the top option.
You can achieve a high level of design flexibility when you choose a window wall system for your building. This system allows you to include openable window sashes, which improve comfort for people inside. You can also use slab bypass covers to create a seamless, modern look on the exterior. If you have specific project requirements, such as sound insulation or fire safety, you can customize the system to meet those needs. The high degree of prefabrication means you can speed up installation and adapt the design quickly if your project changes. This flexibility makes window wall systems a smart choice for residential buildings, especially when you need openable windows or want to keep your project on a tight schedule. You can also benefit from improved installation efficiency, which helps you meet deadlines and maintain quality.
Tip: If your project has strict budget limits or needs fast construction, window wall systems offer a practical solution without sacrificing style or performance.
You can improve your building’s energy performance by using advanced façade technologies. Studies show that different systems offer a range of energy savings, depending on the design and climate. Here is a table that compares common technologies:
Technology Type | Energy Savings (%) | Climate Context |
|---|---|---|
Advanced Curtain Wall Systems | 5% - 27% | Various designs and climates |
Electrochromic Smart Glass | 17% - 23% | Hot-humid climates |
Double-Skin Façades | Up to 40% | Various climates |
Advanced curtain wall systems can save between 5% and 27% of energy each year.
Electrochromic smart windows show savings of 17% to 23% in hot and humid areas.
Double-skin façades can cut heating and cooling energy use by up to 40%.
You can see that window wall systems, when designed with the right materials and technologies, help reduce energy costs and support sustainable building practices.
You will find that window wall systems offer several installation methods to fit your project’s needs. The stick system lets you assemble components piece by piece on-site, which helps if you need to make last-minute changes. The unitized system uses pre-assembled units, so you can install them quickly and keep your project moving. The panelized system uses large, pre-fabricated panels, which reduces the amount of work you need to do on-site.
Installation Method | Description |
|---|---|
Stick System | Assemble parts on-site for flexibility. |
Unitized System | Install pre-assembled units for speed. |
Panelized System | Use large panels to cut on-site labor. |
To keep your window wall system in top shape, you should follow a few simple steps:
Inspect seals and flashing often to prevent water leaks.
Clean glass surfaces to keep them clear and attractive.
Check anchors and supports to make sure they stay strong.
If you follow these steps, you will extend the life of your system and keep your building looking its best.
Install vertical mullions first.
Add horizontal mullions and transoms.
Insert glass panels and infill materials.
Note: Regular maintenance helps you avoid costly repairs and ensures your window wall system performs well for years.
You need to make sure your window wall system meets all local building codes and regulations. Building codes set strict rules for safety, durability, and performance. You must follow these rules to protect people inside your building and to avoid costly delays during construction.
Window wall systems offer strong compatibility with modern building codes. Manufacturers design these systems to meet safety standards for fire, wind, and seismic events. You can trust that your window wall system will pass inspections if you choose products from reputable suppliers. Many systems include features like fire-rated framing, impact-resistant glass, and advanced anchoring methods. These features help you meet code requirements without sacrificing design flexibility.
You may face challenges when your project sits in a densely packed urban area. Architectural compatibility becomes important. Window wall systems adapt well to tight spaces and unique layouts. You can customize the system to fit your building’s shape and style. This flexibility helps you meet zoning rules and neighborhood guidelines.
Local experts play a key role in the permit process. You should work with professionals who understand your city’s codes and regulations. They guide you through paperwork and help you avoid mistakes. You save time and reduce stress when you rely on expert support.
Here is a table that summarizes how window wall systems align with building codes:
Aspect | Details |
|---|---|
Compliance with Building Codes | Emphasizes adherence to safety standards and local regulations. |
Architectural Compatibility | Solutions must be architecturally compatible in tightly packed areas. |
Expert Support | Local experts assist with permit processes and code compliance. |
Safety Standards | Ensures projects meet safety standards while maintaining design flexibility. |
Tip: Always check your local building codes before you start your project. You can avoid costly changes and delays by planning ahead.
Window wall systems help you meet safety standards while giving you freedom in design. You can choose materials and layouts that fit your vision and still pass inspections. Manufacturers test their products to ensure they meet national and local codes. You gain peace of mind knowing your system is built for safety and performance.
You should also consider ongoing maintenance and inspections. Building codes often require regular checks to ensure continued safety. You can keep your window wall system in top condition by following these guidelines.
You may notice several design constraints when you choose a window wall system. Window walls do not work well for high-rise buildings because they cannot span large openings. You often need extra structural support, which leads to smaller glass sizes and more frequent mullions. This can limit your design options and affect the building’s appearance. You might see more visible mullions and the edges of concrete slabs between floors. These features can interrupt the seamless glass look that many architects prefer.
You also need to consider the way window walls are installed. The floor-by-floor installation creates more joints and connection points. Each joint increases the risk of air or water leaks if not sealed properly. You must pay close attention to sealing details during installation and maintenance. Window walls usually have lower thermal performance compared to curtain walls. The slab-to-slab design can cause thermal bridging unless you use special insulation. This makes energy efficiency a key design consideration.
Tip: If you want a smooth glass façade or need to cover large spans, you may want to explore other façade systems.
You face important structural challenges with window wall systems, especially in taller buildings. During an earthquake, the floors in a building can move differently from each other. This movement, called interstory drift, puts stress on the window wall system. You need to make sure the system can handle this movement without breaking the glass or damaging the frames. Safety standards like AAMA 501.4 and AAMA 501.6 test window wall systems for these situations. The system must keep the glass in place and prevent it from falling out during seismic events. If the system fails, glass panels can detach and create safety hazards for people below.
You should always check that your window wall system meets these standards before you start your project. This helps protect the building’s structure and the safety of everyone inside and around it.
You will need to plan for regular maintenance with window wall systems. The many joints and seals in these systems can become weak points over time. Moisture can get through if the sealants fail, leading to water damage, mold, and poor air quality inside the building.
“The most common type failure in curtain wall sections is moisture damage. Damage from water infiltration includes premature deterioration of the wall structure, finish damage, mold and mildew, and decreased interior air-quality. Sealants are the primary use of preventing water penetration into a curtain wall; however, sealants can break apart. Poor adhesion can cause the sealant to break away. The general rule of thumb when concerning water penetration in curtain walls is not to rely entirely on sealant. Sealants are not perfect. Sealants break, pull away, or can not be installed correctly.”
You should inspect the seals and joints often. Replace or repair them as soon as you find problems. This helps prevent bigger issues and keeps your window wall system working well. Regular cleaning and maintenance also help you avoid costly repairs and keep your building looking its best.
You need to check if your project fits a window wall system before making a decision. Several factors help you decide if this system works for your building.
Cost-effectiveness lets you manage your budget and avoid overspending.
Design flexibility allows you to adjust layouts and include features like balconies or operable windows.
Ease of maintenance and repair keeps your building looking good and functioning well.
Installation simplicity saves time and reduces errors.
Structural integrity ensures the system stays strong and safe.
Water leakage risk must be low to protect your interiors.
Exposed slab edges affect the building’s appearance.
Project budget guides your choices.
Aesthetic requirements shape the look of your building.
Specific project needs, such as balconies or operable windows, influence your selection.
You also need to compare window wall systems with curtain wall systems. Curtain walls offer greater structural strength, larger glass panels, and better weather resistance. Maintenance needs differ between the two systems. You must weigh these points to find the best fit for your project.
Local climate and environmental conditions play a big role in how your window wall system performs. If your building sits in a region with strong winds or heavy rain, you need windows that can handle high wind pressures and moisture. Special Wind Regions, as defined by NOAA and FEMA, require windows that withstand sustained winds over 54 MPH and gusts above 115 MPH. In hot, dry climates, you benefit from low-e coatings that block solar heat. Coastal areas need windows with extra durability to resist flooding and saltwater. Aluminum frames work well in extreme weather because they resist corrosion and stay strong under stress. You must choose materials and designs that match your local environment to keep your building safe and comfortable.
You must integrate your window wall system with other building envelope systems for the best results. A systems approach helps all trades understand their roles and how their work connects. Material compatibility matters because different materials interact and may cause failures if not managed. You need to focus on wall and roof intersections, especially where roofing meets siding, to ensure proper moisture drainage and material compatibility.
Here are key layers you should consider for integration:
Layer | Purpose |
|---|---|
Air Barrier | Limits uncontrolled air flow and saves energy |
Vapor Retarder | Controls water vapor and reduces condensation |
Water Penetration Barrier | Keeps water out of the wall cavity |
Thermal Barrier | Stops energy loss and prevents thermal bridging |
Water-Shedding Façade | Protects against weather and pollutants |
You must coordinate these layers to prevent leaks, energy loss, and material failures. Proper integration keeps your building envelope strong and efficient.
Choosing the right brand for your window wall system makes a big difference in your building’s performance and long-term value. You want a supplier that meets strict standards, offers reliable products, and supports you through every step of your project. Trusted brands help you avoid problems with energy loss, moisture, and comfort.
When you evaluate brands, you should look for these key criteria:
Criteria | Description | Importance |
|---|---|---|
NFRC Certification | Products tested with validated scientific methods | Credible energy performance ratings |
U-Factor | Measures heat retention; lower values mean better insulation | Essential for energy efficiency |
Solar Heat Gain Coefficient | Shows how much solar heat enters; lower values are better | Keeps indoor temperatures comfortable |
Condensation Resistance | Measures resistance to condensation; higher values are better | Prevents moisture problems |
Air Leakage | Measures air entering through the product; lower values are better | Critical for energy efficiency and comfort |
You should always check for these features when you select a window wall system. They help you compare brands and make the best choice for your building.
North Tech stands out as a trusted leader in window wall systems. You benefit from their commitment to quality, innovation, and customer support. North Tech tests all products to meet or exceed industry standards. You can trust their systems to deliver strong energy performance, reliable moisture control, and lasting durability.
North Tech’s expert team guides you through design, selection, and installation. You get answers to your questions and solutions for your unique project needs.
You also gain peace of mind knowing North Tech’s products carry important certifications. Their systems offer low U-factors, high condensation resistance, and excellent air tightness. These features help you create a comfortable, efficient, and safe building.
North Tech offers a wide range of window wall solutions for modern buildings. You can choose from systems with advanced thermal breaks, high-performance glazing, and flexible design options. Their products include:
Unitized window wall systems for fast installation and consistent quality
Customizable framing to match your building’s style and needs
Operable windows for natural ventilation and user comfort
High-performance glass options for energy savings and noise reduction
You can explore North Tech’s full product line and technical details on their official website. For specific window wall system options, visit their window wall systems page.
If you want expert advice or need help with your project, you can contact North Tech’s team for support. They help you choose the right system, answer technical questions, and ensure your building meets all code requirements.
Tip: Working with a trusted brand like North Tech gives you confidence in your window wall system’s performance and long-term value.
You learned that a window wall system offers design flexibility, energy efficiency, and strong acoustic performance. Compare it with curtain walls to make the best choice for your project. Review these steps when deciding:
Understand project needs.
Assess structural requirements.
Evaluate seismic performance.
Analyze thermal performance.
Review installation methods.
Explore North Tech for expert guidance and quality window wall products. Visit their website for more information and support.

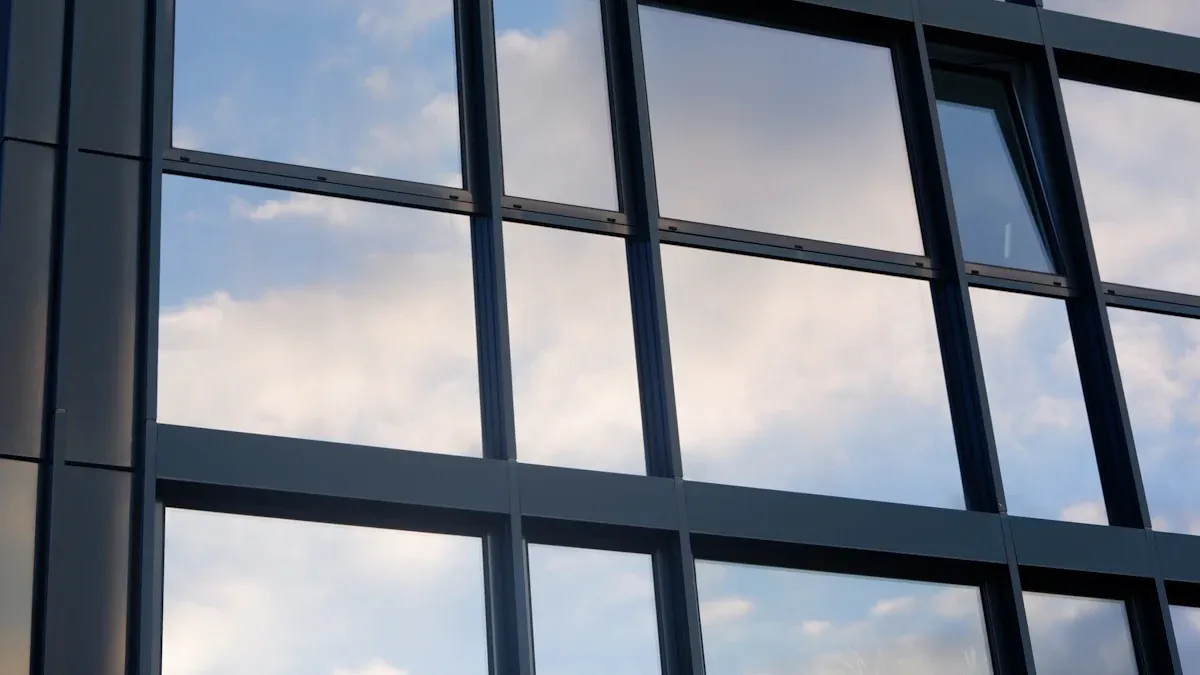

You install a window wall system between floor slabs. Curtain walls hang outside the building structure. Window walls offer easier installation and better sound separation between floors.
You can use window wall systems in mid-rise and some high-rise buildings. For very tall buildings, curtain walls often work better because they handle larger spans and higher wind loads.
You get improved energy efficiency with insulated glass, thermal breaks, and tight seals. These features help reduce heat loss and keep your building comfortable year-round.
Yes, you can achieve strong noise control with laminated or insulated glass. Window wall systems block sound between floors, making them ideal for hotels and apartments.
You should inspect seals, joints, and glass regularly. Clean the glass and check for leaks or damage. Regular maintenance helps your system last longer and perform well.
You can choose different frame colors, glass types, and decorative elements. Window wall systems offer design flexibility to match your building’s style.
Manufacturers design window wall systems to meet safety and performance codes. You should always check local requirements and work with trusted suppliers.
You should consider your building’s height, climate, design needs, and code requirements. Consult with experts like North Tech for guidance and product options.
